Vander-Burn Cherokee-H Flying Model Rocket Kit
** Due to new USPS surcharges, please do not have this kit shipped to a P.O. Box if you can help it (we will most likely be shipping this via UPS or Fedex if “Standard Shipping” is chosen). We do not intend to increase our shipping rates unless absolutely necessary **
Upscale of the popular Estes classic.
3" diameter
66" long (upscaled from current Cherokee-E)
29mm motor mount (special foil lined tube)
Flights on large F motors up to I motors. Estimated altitude on I205: 3000'
CP is 145cm from the nose cone tip on the 66" long version. That should be right in front of where the forward end of the fin hits the body.
Vander-Burn model rocketry kits are made for experienced modelers who are comfortable building mid and high-powered model rockets.
Vander-Burn model rocketry kits are recommended for ages 18+.
Included Components and notes:
Laser slotted body tube (Sometimes end of laser-cut slots gets creased. This is OK and will straighten out once centering rings are installed)
29mm motor mount with Estes screw on motor retainer.
High quality 1/8” Baltic birch fins and centering rings. Fully laser cut - no tabs to sand off.
Stickershock23 graphics included. Old-school red color printed wraps for the body, cut vinyl swoops for the fins.
Kit weight (before glue and paint): 24oz.

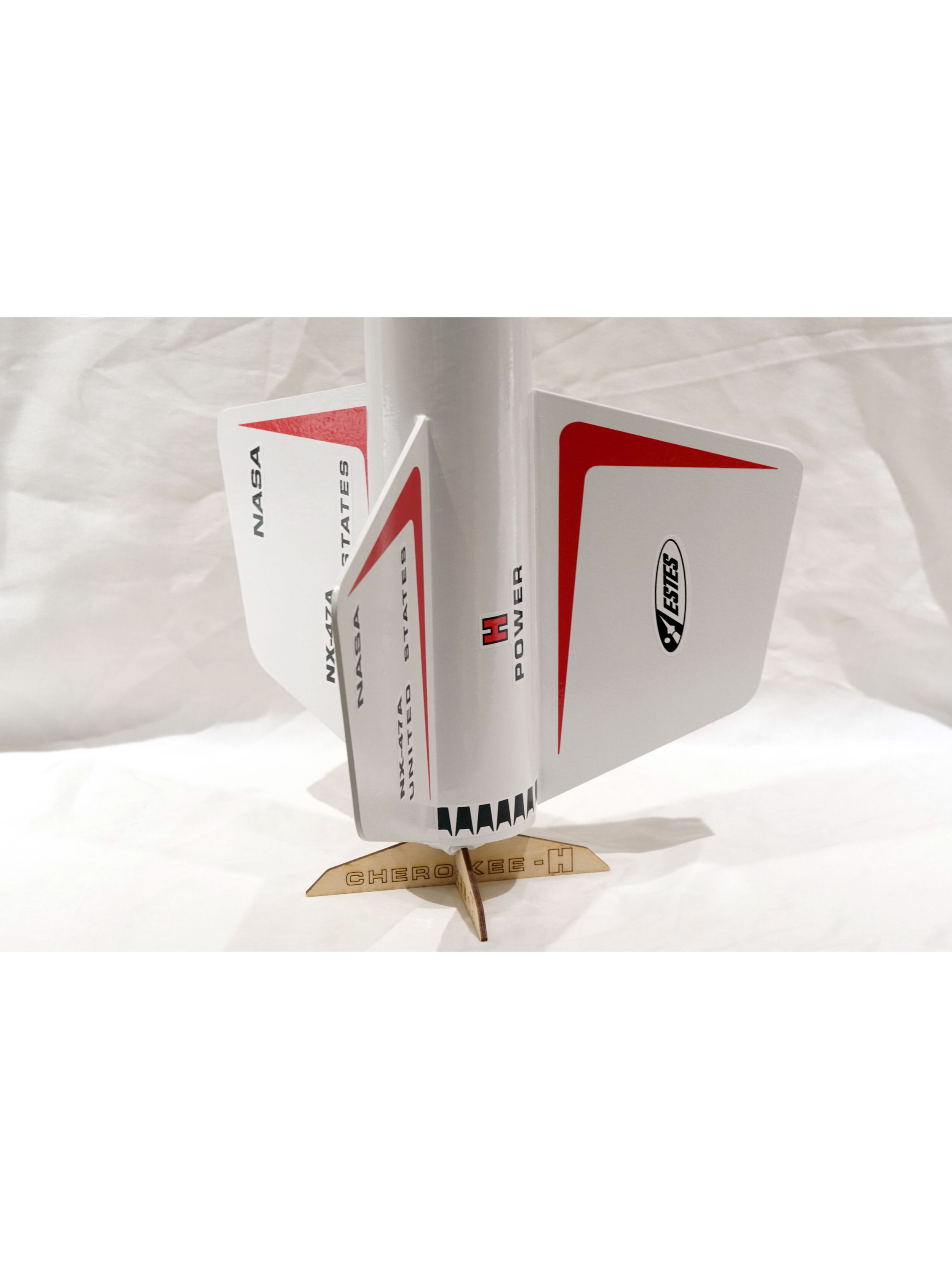

Rocket Stand in photo not included
Motor ejection baffle with eye bolt. Bulkhead plate also included if you wish to build it payload style.
Rail buttons and 1/4" launch lug.
Launch Lab 30" Blue Nylon parachute (Estes red chute shown in pic).
